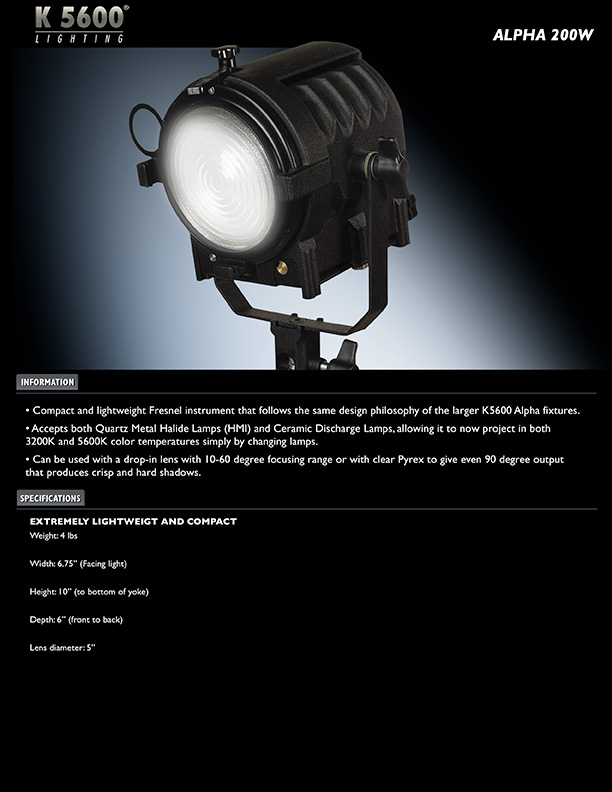

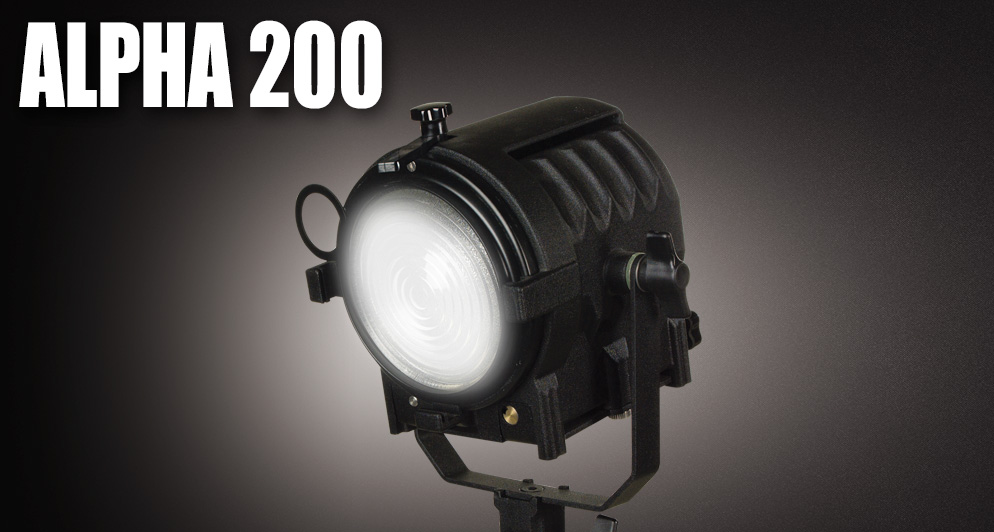

Alpha 200

• Compact and lightweight Fresnel instrument that follows the same design philosophy of the larger K5600 Alpha fixtures.

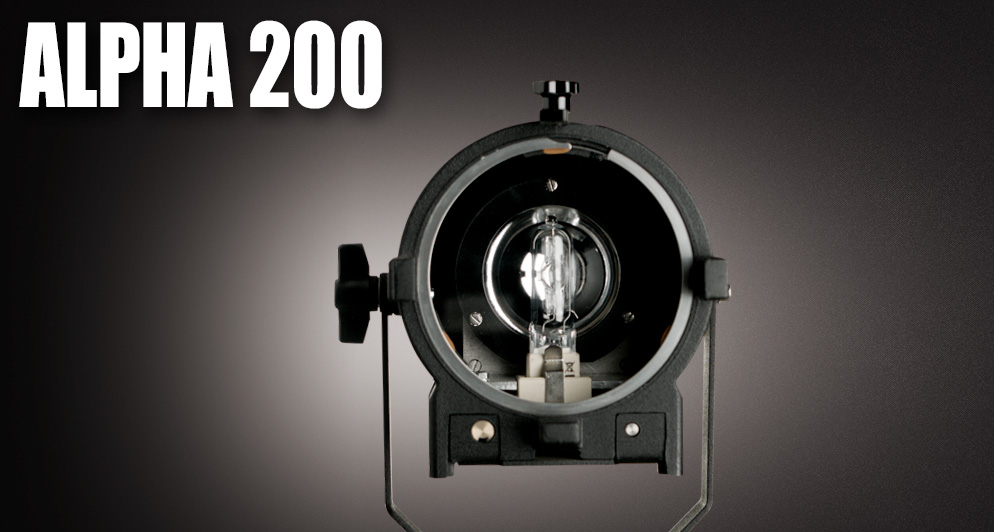

• Accepts both Quartz Metal Halide Lamps (HMI) and Ceramic Discharge Lamps, allowing it to now project in both 3200K and 5600K color temperatures simply by changing lamps.

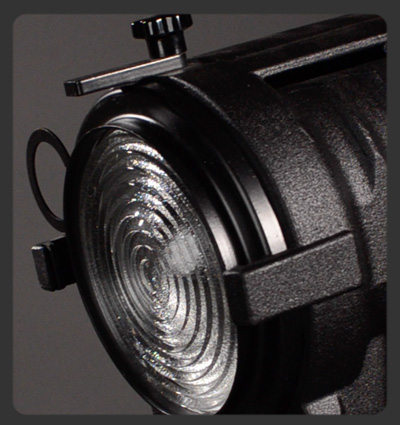

• Can be used with a drop-in lens with 10-60 degree focusing range or with clear Pyrex to give even 90 degree output that produces crisp and hard shadows.

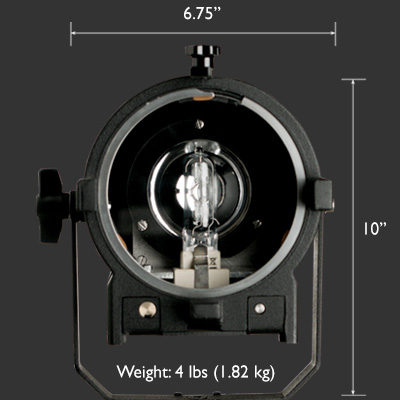

Weight: 4 lbs

Width: 6.75"

Height: 10" (to bottom of yoke foot)

Depth: 6" (front to back)

Lens Diameter: 5"


K 5600, Inc introduces the Focal Spot, which gives your current Joker-Bug 200W, 400W, or 800W immediate projection capabilities... (more)

We carry a large assortment of Lightbanks, just give us a call or email and we'll find the right lighting solution for your needs... (more)

Lenses come in Medium, Wide, Super Wide and Frosted Fresnel... (more)

We carry a large assortment of Lanterns, just give us a call or email and we'll find the right lighting solution for your needs... (more)



Distance Lens/Config Fc. L W F Stop
3' Spot
Medium
Wide
Super Wide
Fresnel Frost
VPXS
6' Spot
Medium
Wide
Super Wide
Fresnel Frost
VPXS
10' Spot
Medium
Wide
Super Wide
Fresnel Frost
VPXS
15' Spot
Medium
Wide
Super Wide
Fresnel Frost
VPXS
20' Spot
Medium
Wide
Super Wide
Fresnel Frost
VPXS
