Joker² 800

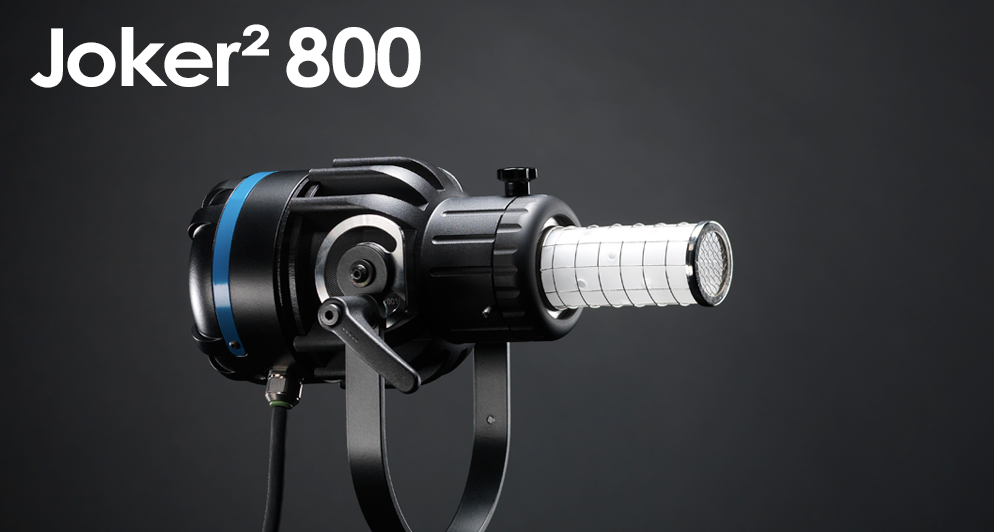

The Joker² 800, designed around a UV-block bulb originally commissioned by K5600, was the first unit of this wattage introduced on the market.

More Output in Lightbanks

Designed specifically to take full advantage of the large reflective material inside a Lightbank, this fixture provides 50% more output than a regular PAR 1200W, and a better spread of light thanks to the bare-bulb design of the Bug-Lite.

Two Beamers Available

Like the Joker² 1600W, the Joker² 800W can be used with two different Beamers :

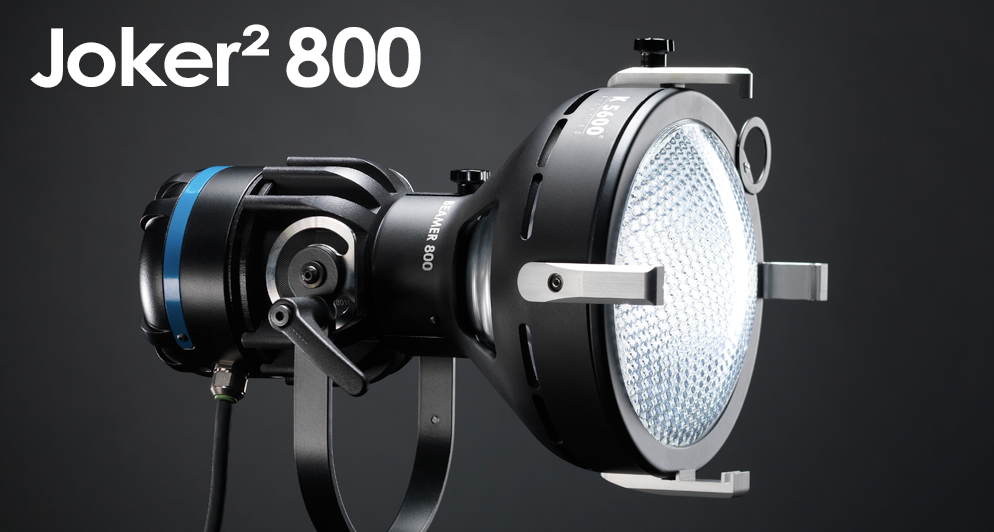

The PAR beamer which features a specular reflector and can be used with the classic set of four lenses supplied in all Joker-Bug kits (Medium, Wide, Super Wide and Frosted Fresnel).

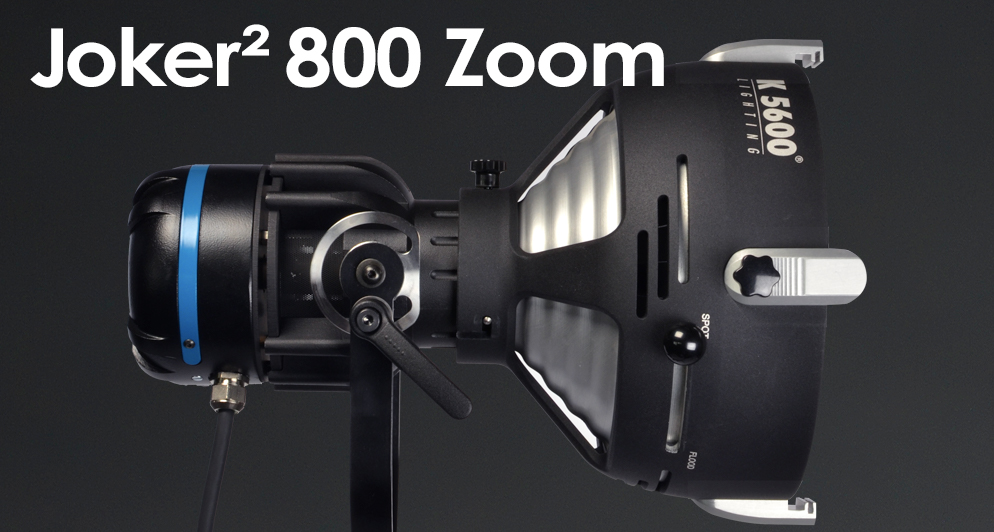

The Zoom Beamer which consists of a segmented reflector, focusable from 15 to 55 degrees.

High Speed Ballast & Wireless Capabilities

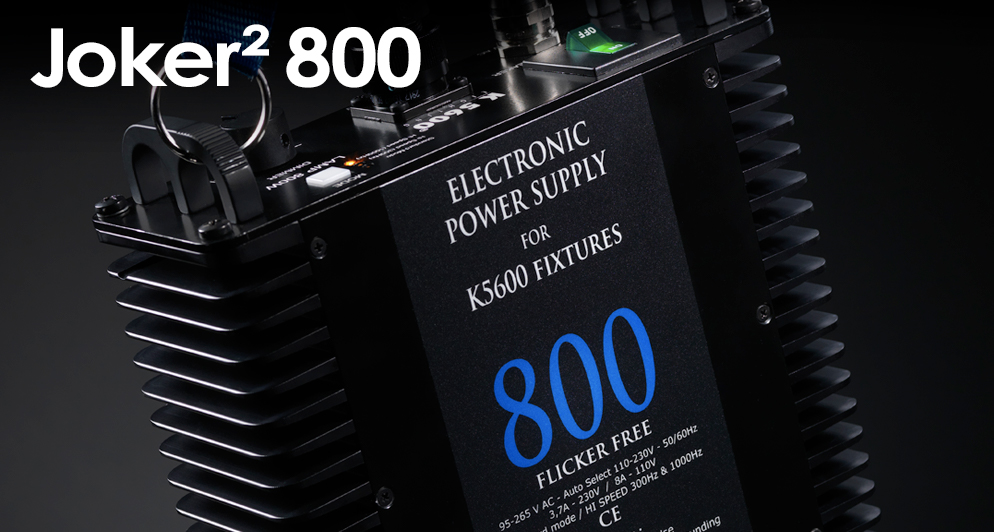

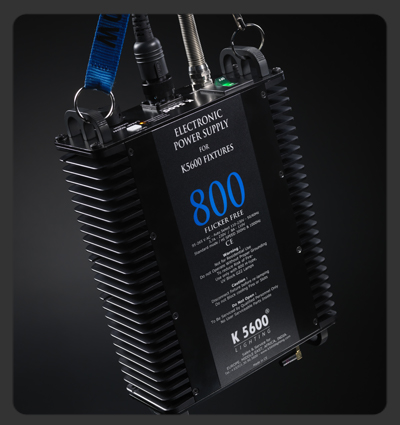

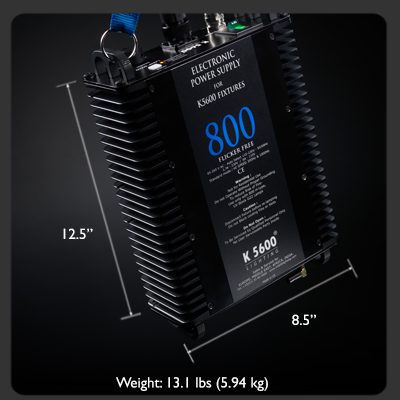

The 800W comes with a dimmable ballast, which is able to work at 300 or 1000 Hz frequencies for High Speed shoots. Using the "Lumenradio" protocol, the new ballast now has an antenna and DMX panel allowing for it to be controlled via a tablet or smartphone.

Convenience & Travel

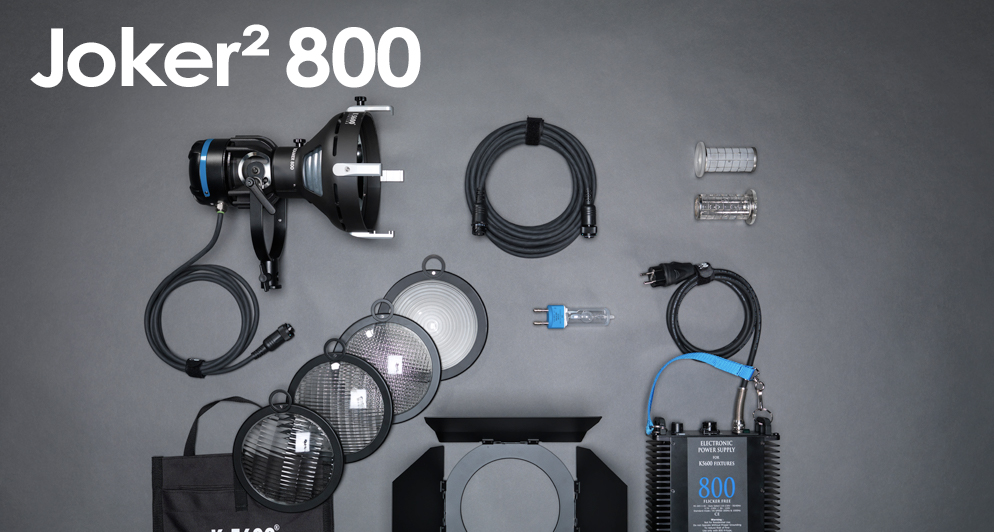

Coming in a hard case like the other units in the Joker line, the 800W is easy to take on flights making it the ideal travel companions for gaffers. The complete kit weighs only 47lbs and is compact making it perfect for tiny spaces, and can be run on domestic electrical supply.

Electrical Consumption: 3.7 Amps @ 230V

JOKER² Speedring Reference: 9780 OP (compatible with Octaplus, Lanterns, Pancakes, Video Pro from Chimera)

Bulb: 800 Watt MSR/SE daylight single ended discharge. Special UV-Stop envelope. 600 hours maximum life.

Connectors: Veam quarter-turn quick locking.

Extension Cable: 25 foot shielded. Common to 400, 800 and 1600 (nine feet attached to the head).


Lenses come in Medium, Wide, Super Wide and Frosted Fresnel... (more)

We carry a large assortment of Lightbanks, just give us a call or email and we'll find the right lighting solution for your needs... (more)

The BIG-EYE Joker accessory will turn any Joker-Bug system into a Giant Focusable Fresnel Beauty light... (more)

We carry a large assortment of Lanterns, just give us a call or email and we'll find the right lighting solution for your needs... (more)

The BUG-A-BEAM Adaptor is the part that makes the mating of a Source-4 and our Bug-Light 400 or 800 not only possible but quick and easy... (more)

The Multi-Bug Adaptor allows you to create a large, powerful, soft source using the inventory you already own or have at your disposal in your lighting package... (more)

The Softube is an accessory to the Joker light. It transforms a normally spotty narrow beam into a soft and even linear source... (more)

Photographers are turning to motion. Your clients are demanding it, and your cameras can handle it. We think you and your current crew can deliver both still and motion, without busting the budget... (more)





Distance : 3m

LENSES LUX DIAPH 100 ASA 25 I/S RADIUS TOTAL ANGLE
W/O LENS 260 000 45 14cm
MEDIUM 37 600 16 1/4 1,40m x 55cm
WIDE 20 500 11 1/4 2,30m x 60 cm
SUPER WIDE 5 560 5,6 1/2 1,25m 45°
FROSTED FRESNEL 3 100 4 1/2 1,10m 40°

Distance : 5m

LENSES LUX DIAPH 100 ASA 25 I/S RADIUS TOTAL ANGLE
W/O LENS 93 600 22 1/2 0,25m
MEDIUM 1 3536 8 3/4
WIDE 7 380 5,6 3/4
SUPER WIDE 2 002 4 2,10m 45°
FROSTED FRESNEL 1 116 2,8 1,85m 40°

Distance : 10m

LENSES LUX DIAPH 100 ASA 25 I/S RADIUS TOTAL ANGLE
W/O LENS 23 400 11 1/2 0,46m
MEDIUM 3 384 4 3/4
WIDE 1 845 2,8 3/4
SUPER WIDE 500 2 4,15m 45°
FROSTED FRESNEL 279 1,4 3,66m 40°

ZOOM BEAMER

DISTANCE POSITION LUX DIAPH 100 ASA 25 I/S RADIUS TOTAL ANGLE
3m SPOT 25 100 11 1/2 33cm 10°
FLOOD 7 000 5,6 3/4 1,20m 45°
5m SPOT 9 036 8 0,55m 10°
FLOOD 250 1,4 2m 45°
10m SPOT 2 259 4 1,10m 10°
FLOOD 630 2 1/4 4m 45°
