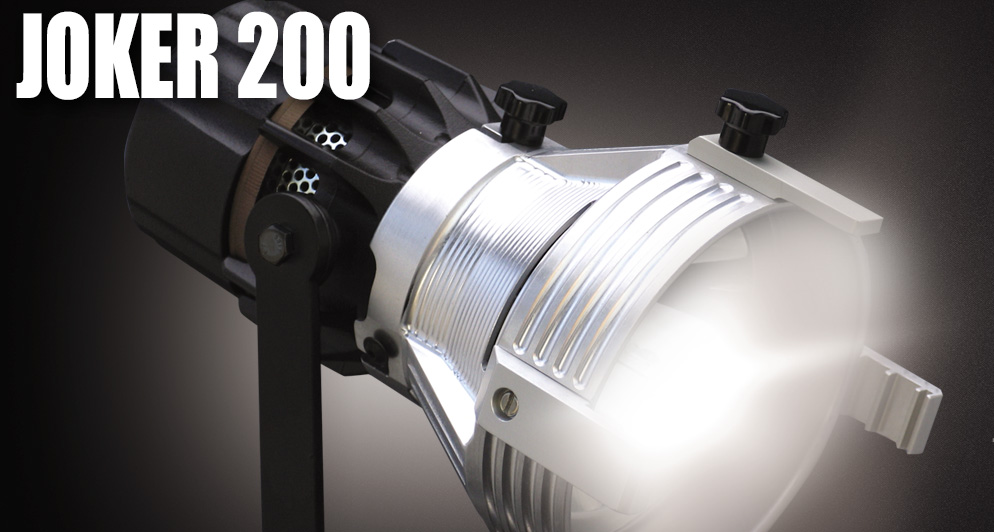

The output of the Joker-Bug 200 can be compared to a 750/1000 Watt quartz fixture, but with a power draw of only 3 Amps. It has become a standard for small interiors, interviews, documentaries and car shots. The system will travel and operate in 110 and 240Volt environments as well as 28.8 (2x 14.4 camera batteries) and 30 Volt.

The PAR type design was preferred for its spot to flood ration (80 to 1), compactness (no focusing), ease of use and efficiency through diffusing material. The popular set of four lenses (3xPAR36 and a Frosted Fresnel) and barndoor will help to control the beam patterns from 5 degrees to 65 degrees. The "Bug-Lite" configuration is designed to fill evenly a Lantern or any size Lightbank, making it the perfect light for interviews. Its lightweight allows it to hang safely at the end of a boom arm.

Lamp Housing: Aluminum casting, high temperature black epoxy.

BEAMER Housing: Solid one piece machined aluminum, with replaceable ears. Clear anodized.

Safety Glass Beaker: Borosilicate UV filter tempered.

Yoke: 5/8"Baby size receptacle, Aluminum casting black epoxy finish. Large brake area for use of front end lightbanks, speed rings, louvers and lanterns.

Lamp: MSR 200 HR, 5600 Kelvin, 200 hours life.

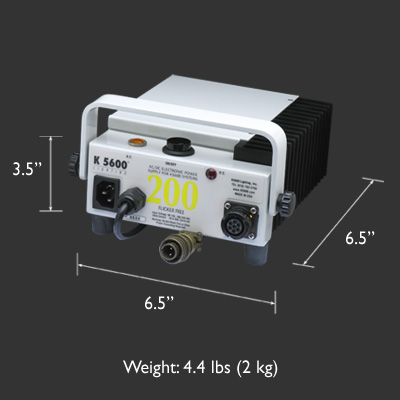

Power Supply: Electronic, square wave flicker free AC input: 90-265 Volt 50 or 60 Hz. DC Input: 30 Volt or 14.4 Volt.  Dual function ON/OFF push button switch and completely silent (convection cooled). Connectors: Veam quarter turn quick locking.

Extension Cable: 25ft and 9ft attached to the head.

Reflector: 3 3/4 diameter specular parabolic. Aluminum 90% reflectance electrolytically coated.

Accessory Size: 5".

Accessories: lenses (Super-Wide, Wide, Medium, Frosted Fresnel), color correction glass, speed rings, barndoor, Softube and the Frosted Beaker.


K 5600, Inc introduces the Focal Spot, which gives your current Joker-Bug 200W, 400W, or 800W immediate projection capabilities... (more)

We carry a large assortment of Lightbanks, just give us a call or email and we'll find the right lighting solution for your needs... (more)

The BIG-EYE Joker accessory will turn any Joker-Bug system into a Giant Focusable Fresnel Beauty light... (more)

We carry a large assortment of Lanterns, just give us a call or email and we'll find the right lighting solution for your needs... (more)

Lenses come in Medium, Wide, Super Wide and Frosted Fresnel... (more)

The Multi-Bug Adaptor allows you to create a large, powerful, soft source using the inventory you already own or have at your disposal in your lighting package... (more)

The Softube is an accessory to the Joker light. It transforms a normally spotty narrow beam into a soft and even linear source... (more)

Photographers are turning to motion. Your clients are demanding it, and your cameras can handle it. We think you and your current crew can deliver both still and motion, without busting the budget... (more)

Distance Lens/Config Fc. L W F Stop
3' Spot 65750 0.2 0.2 .
Medium 10750 0.8 0.6 .
Wide 3350 2.6 0.8 32
Super Wide 1000 3.2 3.2 16 1/3
Fresnel Frost 1300 1.9 1.9 16 2/3
VPXS 144 4.2 4.2 5.6 1/3
6' Spot 16438 0.4 0.4 .
Medium 2688 1.6 1.1 22 1/3
Wide 838 5.2 1.6 16
Super Wide 250 6.4 6.4 8 1/3
Fresnel Frost 325 3.7 3.7 8 2/3
VPXS 36 8.3 8.3 2.8 1/3
10' Spot 5918 0.7 0.7 32 2/3
Medium 968 2.7 1.9 16 1/3
Wide 302 8.7 2.7 8 2/3
Super Wide 90 11 11 5.6
Fresnel Frost 117 6.2 6.2 5.6 1/3
VPXS 13 14 14 2
15' Spot 2630 1 1 22 1/3
Medium 430 4 2.8 11
Wide 134 13 4 5.6 1/3
Super Wide 40 16 16 2.8 2/3
Fresnel Frost 52 9.3 9.3 4
VPXS 6 21 21 1.4
20' Spot 1479 1.3 1.3 22
Medium 242 5.3 3.8 8 1/3
Wide 75 17 5.3 4 1/3
Super Wide 23 21 21 2.8
Fresnel Frost 29 12 12 2.8
VPXS 3 28 28 .
