K0800ALPHA

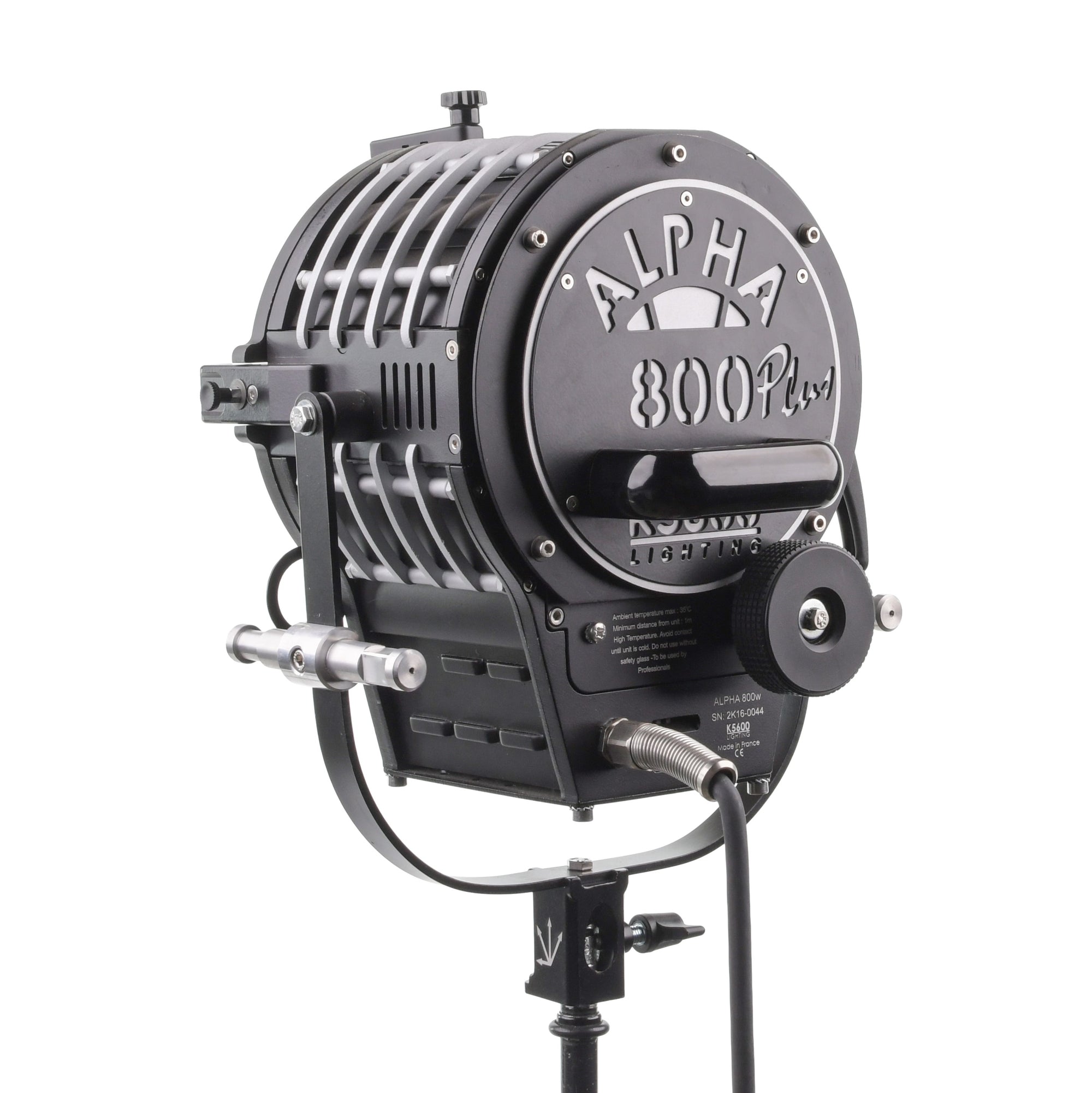

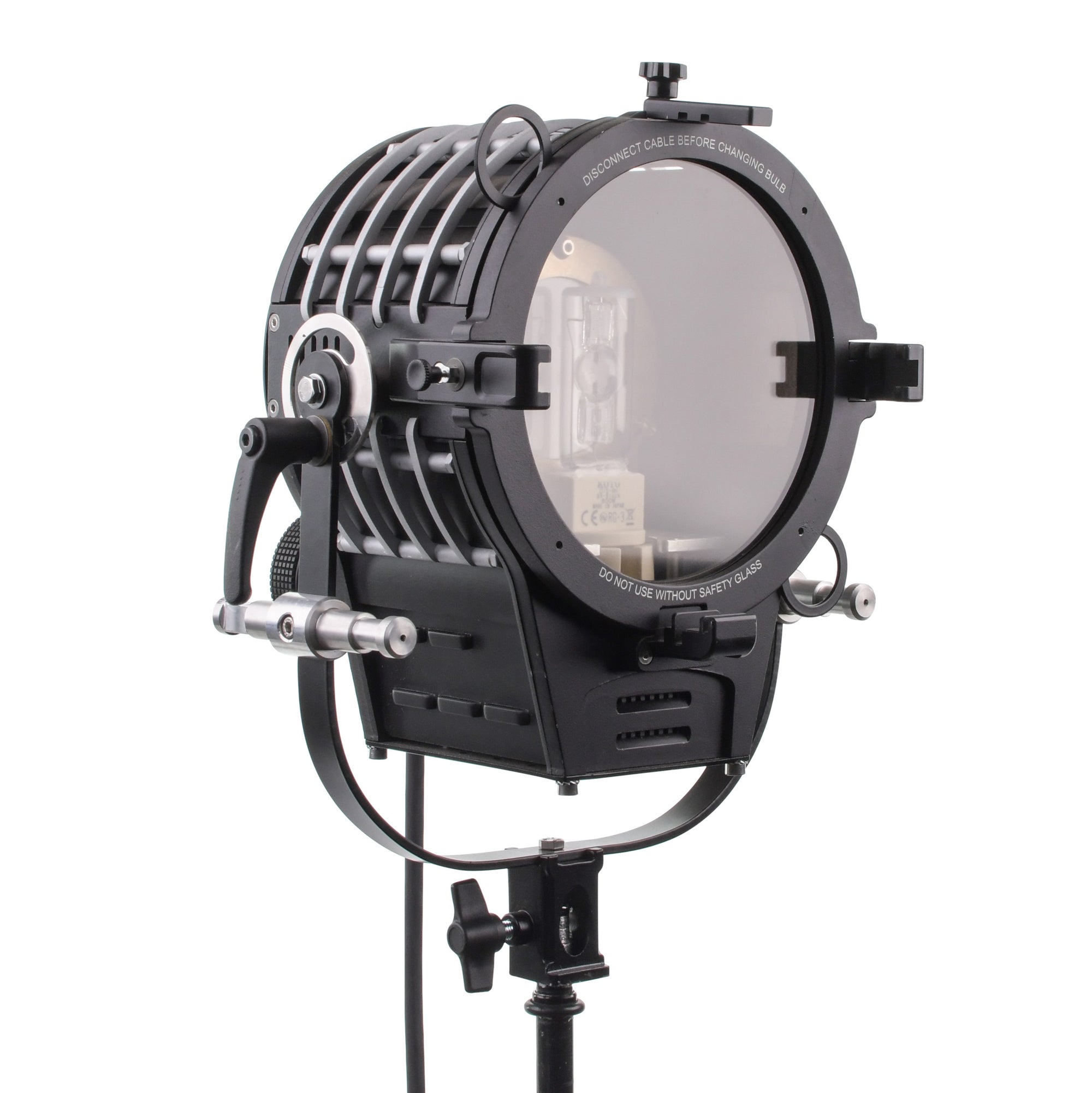

Alpha 800W Kit

The first 800W HMI Fresnel on the market, the Alpha 800 is our most versatile Fresnel instrument yet.

Traditional 1200W Fresnels use the same 175mm lens, but are significantly larger than our compact 800W model.  Like all Alphas, the Fresnel is easily removable giving a clear glass open eye option.  Beam patterns range from 5-60 degrees as a Fresnel, or nearly 120 degrees as an open eye fixture.

Utilizing our custom quartz reflector technology, all Alphas can be burned straight down, for powerful top lighting applications.

What makes the 800W Alpha especially versatile?  90 degree socket adapters and associated accessories are available, giving you the ability to turn your Fresnel instrument into a PAR Light.




  • 1 x UALPHA800 - Alpha 800
    1 x A0800LF - Alpha 800 Fresnel Lens w/Ring
    1 x A0800ALPHAPYR - Alpha 800 Clear Lens w/Ring
    1 x P0800SS - Alpha 800 Safety Wire
    1 x L0800SE - Lamp 5600K, UV Stop, SE
    1 x C0900U - Extension cable, 25 feet
    2 x A0800FD - Full Double scrim 800W - 7 3/4"
    1 x A0800FS - Full Single scrim 800W - 7 3/4"
    1 x A0400LB - Lens Bag 400/800
    1 x A0800BD - Four leaf Barndoor
    1 x B0800E2 - 800W Ballast; wDMX, ALS, Dimming, 1000Hz
    1 x A0800CCC - Carrying case 800W
  • Item Width, Height, Depth and Weight:
    Head: 10" x 10" x 10" ; 10 lbs.
    Ballast: 15" x 9" x 4" ; 14 lbs.
    Kit: 17" x 12" x 19" ; 50 lbs.

    Other Item Specifications:
    Head: Machined Aluminum
    Ballast: Electronic square wave, flicker free AC Input; 90-265V, 50/60Hz. Convection Cooled. Hi Speed 1000Hz; Wireless DMX enabled; 7.5 Amps @ 120V
    Lamp: 800W MSR/HMI, 5600K, Single Ended
    Cable: 9' Head Cable; 25' Extension
    Accessory Size: 7 3/4"
    Lens Diameter: 175mm
  • Coming Soon
