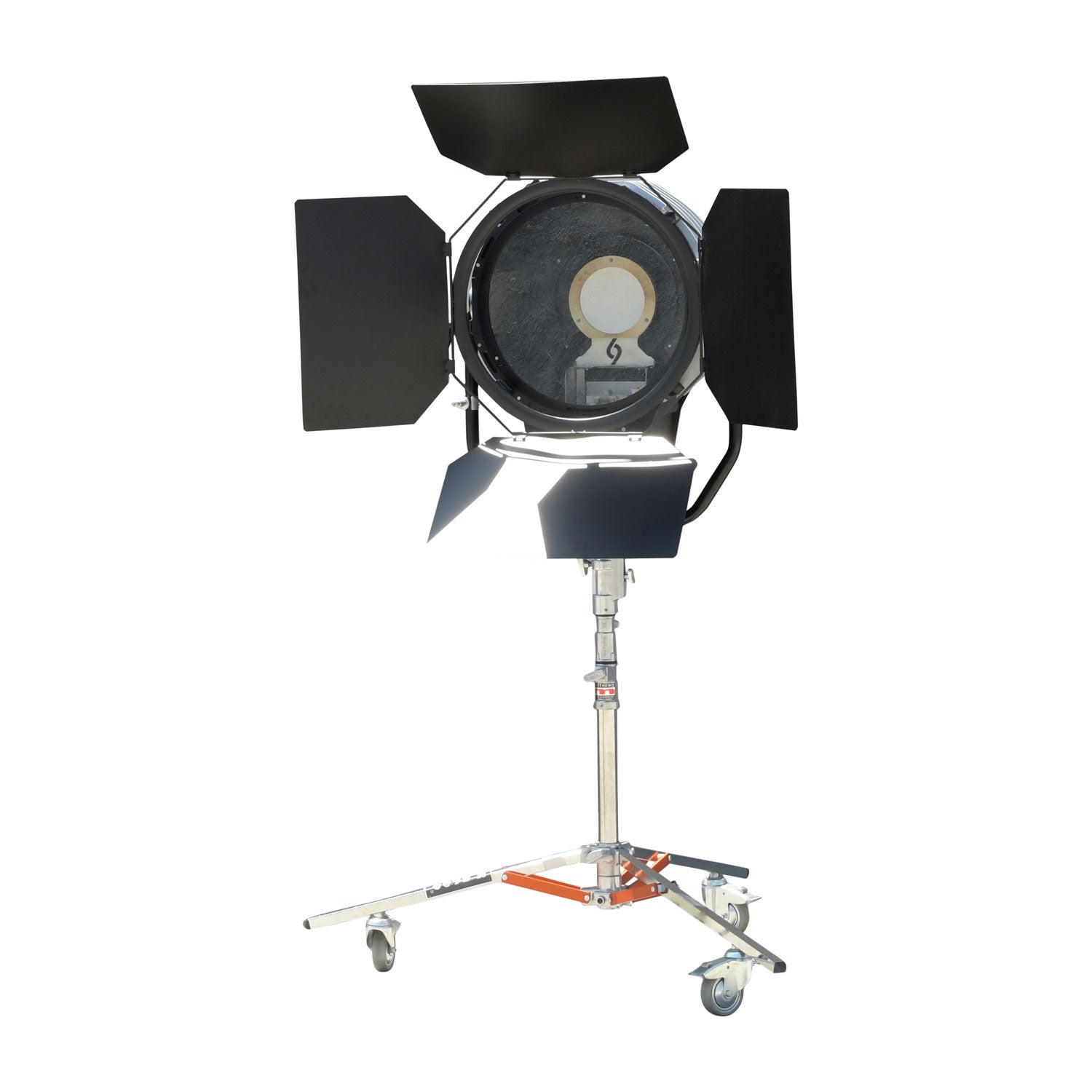

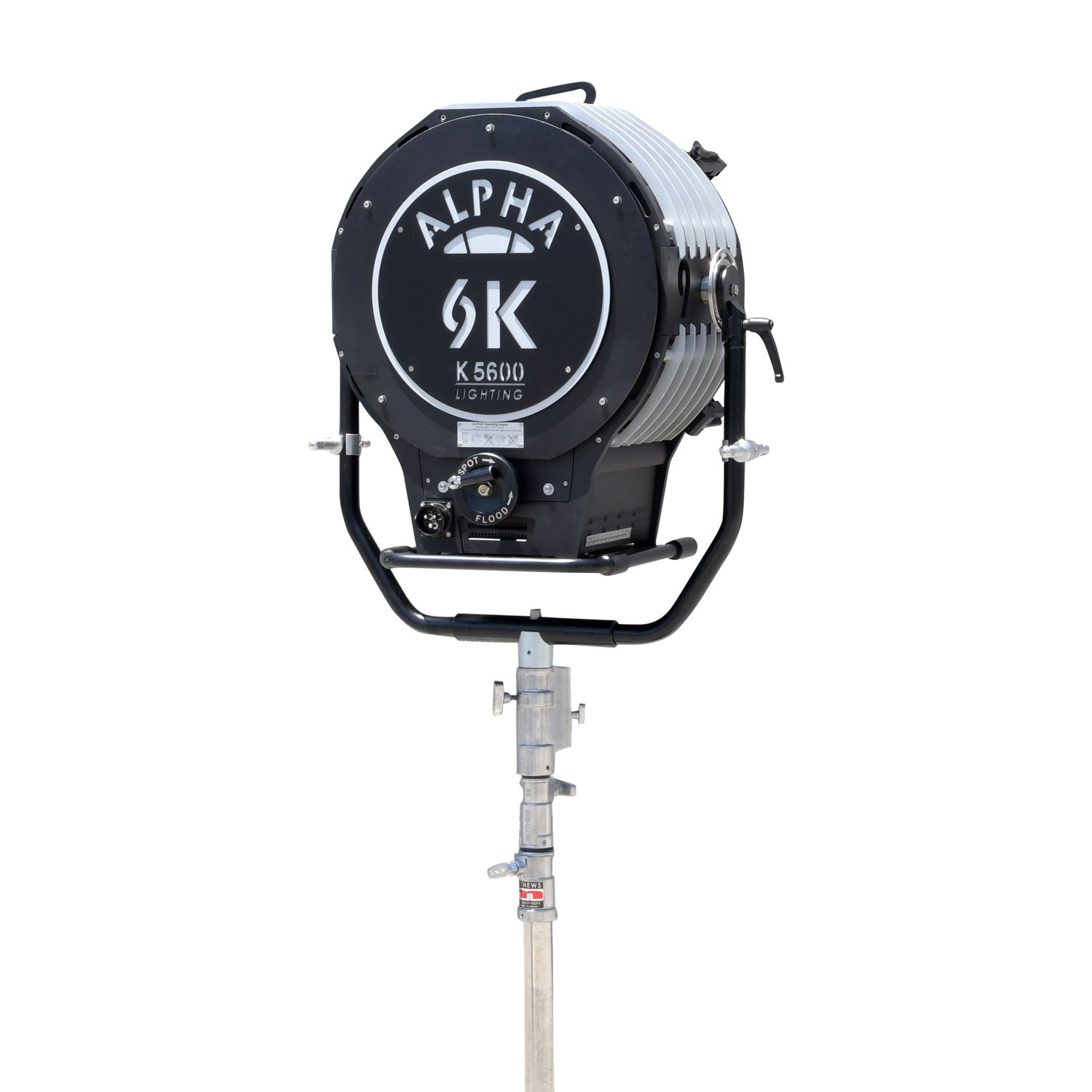

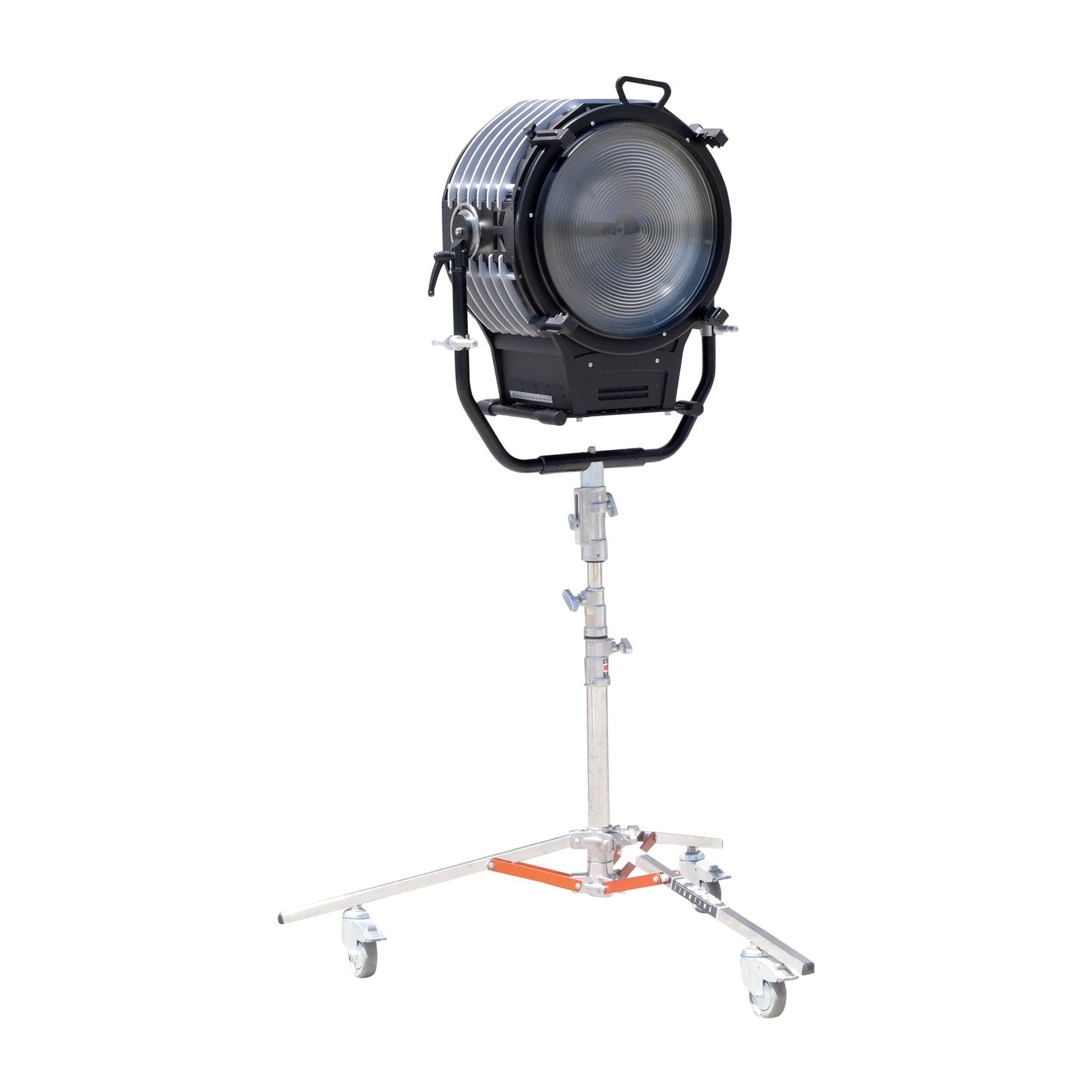

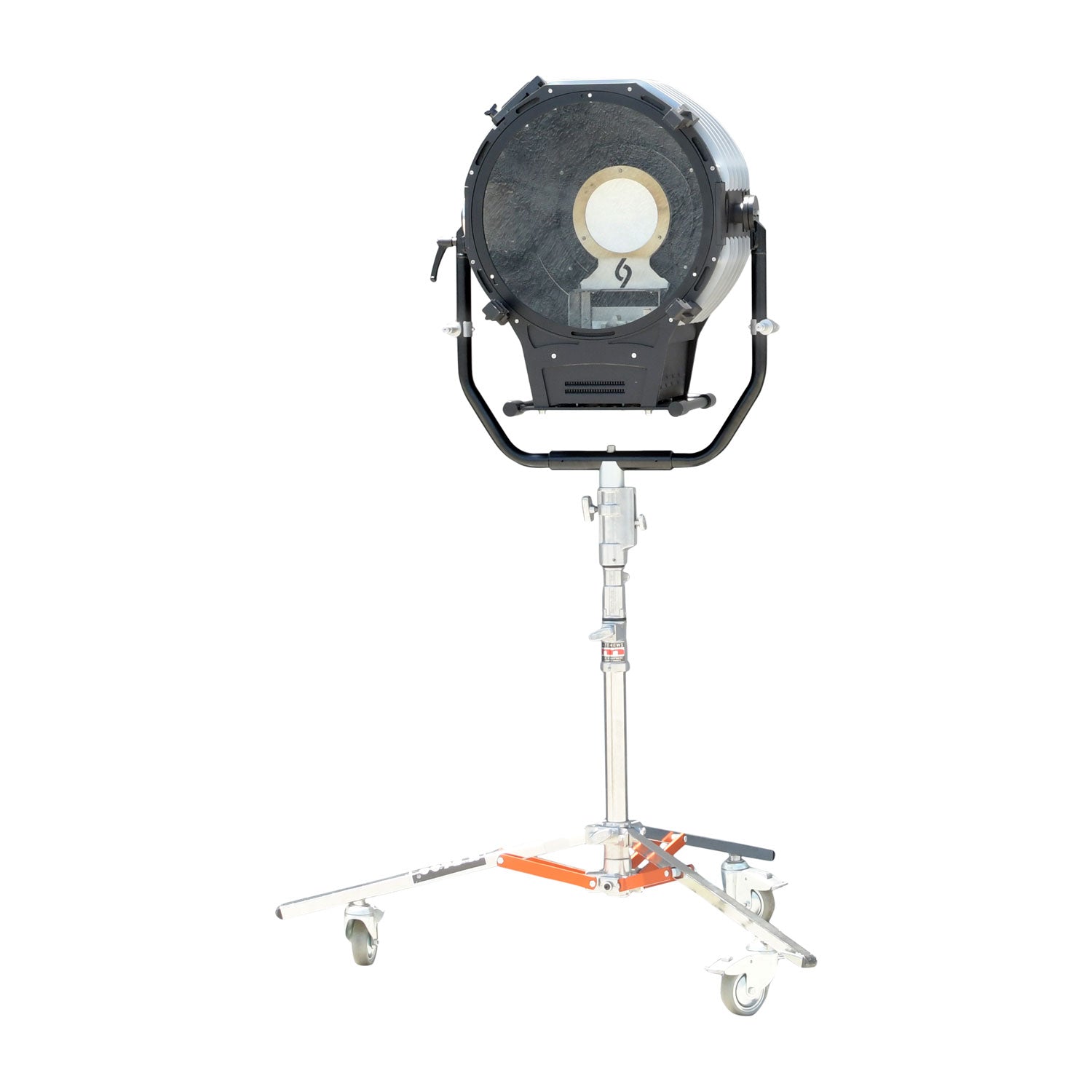

Alpha 9KW Kit

The Alpha 9K is the only 9K Fresnel on the market. Whether it’s creating a soft Fresnel look or a hard shadow, the Alpha 9K gives users the tool they need to get the job done. Additionally, the specially designed air ventilation system allows heat to be dissipated efficiently. In fact, it runs so “cool,” it can be illuminated in the straight down position.

Features Include:

“Open-Eye” HMI fixture converting to a very small Fresnel by a unique Drop-In Flood Fresnel Lens reducing overall fixture weight

Revolutionary Quartz Composite Reflector - 15% brighter than standard aluminum reflectors

Combination of high-efficiency small Quartz reflector with computer- designed structural air vents provides efficient convection cooling in any operating position - even pointing straight down

Quick and safe release of the lamp via a simple latch on the ceramic G38 socket.  A 6000W or 9000W HMI Lamp can be used.

  • 1 x U9K - Alpha 9K Head w/Safety Screen
    1 x A9KLF - Alpha 9K Fresnel Lens w/Ring
    1 x P9KBD - Alpha 9K Barndoor
  • Item Width, Height, Depth and Weight:
    Head (No Lens): 30" x 18" x 26" ; 75 lbs.
    Head (With Lens): 30" x 18" x 26" ; 88 lbs.

    Other Item Specifications:
    Head: Machined Aluminum
    Lamp: 6000W or 9000W MSR/HMI, 5600K, Single Ended
    Accessory Size: 19 1/2"
    Lens Diameter: 450mm
  • Coming Soon
